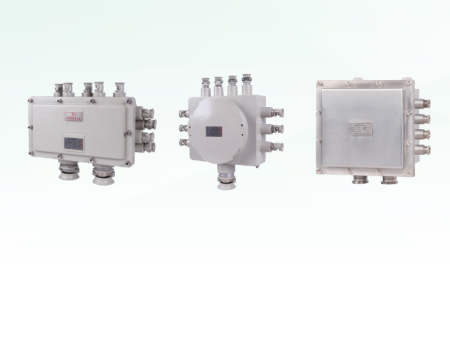

BJX 51/52 series flameproof junction box
Qty (Piece/Pieces) |
Unit Price (37.0~50.0 USD) |
1 |
37.0 |
1 + |
50 |
Payment Terms: |
T/T |
Place of Origin: |
Liaoning, China (Mainland) |
Product Detail
Model No.:
BCX5
Brand Name:
Hailang
package:
Standard Carton
use:
Dustproof
Means of Transport:
Ocean
kind:
Explosion-proof equipment
Material:
plastic enclosure
function:
Explosion-proof
applicable to zone 1 and 2 of explosive environment;
applicable to explosive gas environments of class A,B and C;
Technical data
Explosion-proof marks: Exd Ⅱ BT6 Gb/DIPA20TA, T6
• protection level: IP54, IP65
• rated working voltage: A.C. to 380V
• rated current: less than or equal to 100A
• corrosion protection grade: WF2
Product features
• the shell is made of aluminum alloy with static spraying;
• the shell can be made of stainless steel according to customer requirements;
• the direction of the inlet can be determined according to the requirements, and the cable clamping and sealing joints for the DM series of cable can be equipped according to the requirements of users;
• the inlet specification of the junction box is normally British pipe threads, which can process metric threads or NPT threads as required by the user. Please specify when ordering.
